A09JE( A30JE)

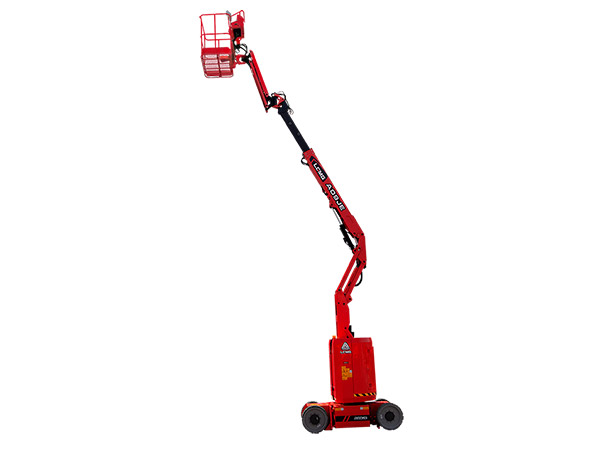

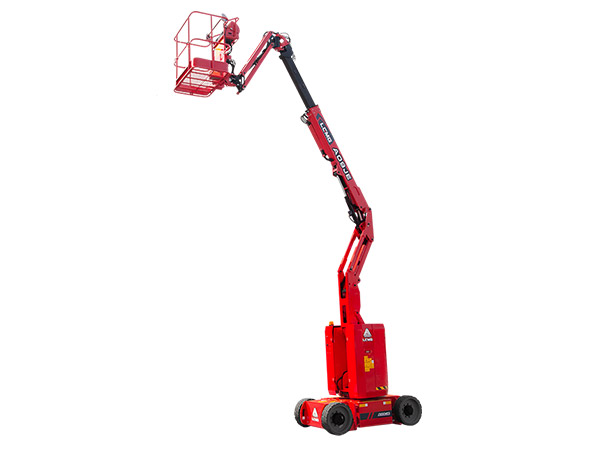

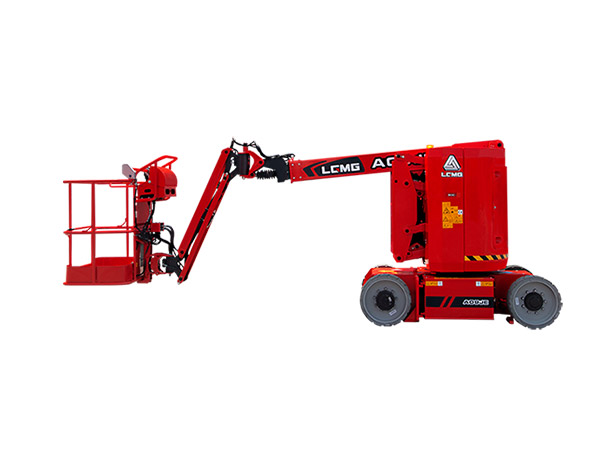

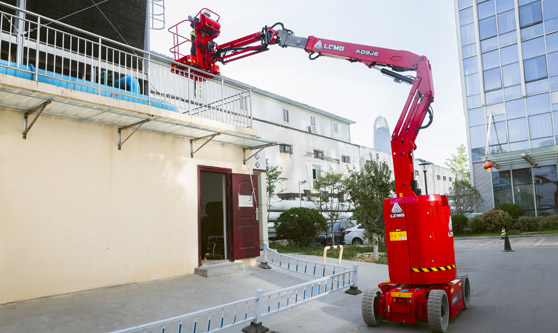

LGMG A09JE articulating boom lift provides environmentally friendly, zero emission operation for both indoor and outdoor applications. With 1.19m ultra-compact chassis and 9m platform height, A09JE offers great ability to extend over obstacles in tight working areas.



l 1.19m (3'11") ultra-compact chassis means it fits through standard doorways and can operate more flexibly.

l The jib can swing ±90° horizontally and has a wider working range.

l Lifting and driving are powered by AC motors which are maintenance-free and offer improved safety.

l Proportional lift and drive controls delivers the best compound action.

l Dual joystick controller with precise control even for small movements.

  • 11m(36’1’’)
    Work Height Max.
  • 230kg(507lbs)
    Platform Capacity
  • 1.19m(3’11’’)
    Machine Width
  • 6.25m(20’6’’)
    Horizontal Outreach
  • 6700kg(14770lbs)
    Machine Weight
ModelsA09JEA30JE
MeasurementsMetricUS
Work Height Max.11m36'1''
Platform Height9m29'6''
Horizontal Outreach6.25m20'6''
Up and Over Height4.12m13'6''
Platform Length1.17m3'10''
Platform Width0.76m2'6'
Platform Capacity230kg507 lbs
A- Stowed Length5.46m17'11''
Lenth-Transport (jib tucked)
3.58m11'9''
B- Overall Width1.19m3'11
C- Stowed Height2m6'7''
Height-Transport2.52m8'3''
D-Wheelbase1.58m5'2''
E-Ground Clearance0.09m4''
Productivity
Max. Platform Occupant2(in) / 2(out)
Turntable Rotation355°355°
Drive Speed-Stowed5km/h3.1mph
Drive Speed-Raised0.65km/h0.4mph
Gradeability30%30%
Max. Wind Speed12.5m/s28mph
Turning Radius-Inside1.65m5'5''
Turning Radius-Outside3.15m10'4''
Max.Slope2.5°/4.5°2.5°/4.5°
Tires TypeSolid Non-marking
Tires Size560x180mm22''x7''
Ground Pressure, Tyres715 kPa103.7 psi
Power
Power Source48V  390Ah
Hydraulic System
Hydraulic Oil Volume17L4.5gal
Weight
Machine Weight (CE/ANSI)6700kg14770 lbs

Standard features

Proportional control

Emergency descent

Horn/Hour meter

Solid non-marking tires

AC drive motor

Over tilt protection system

AC lifting motor

Intelligent diagnostic system

Overload sensing system

Power switch

Auto-leveling platform

Full-height drive

Anti-collision protection

Telematic connector


Optional

AC power to platform

Biodegradable hydraulic oil

Telematics
