A14JE(A45JE)

LGMG A14JE electric articulating boom lifts provides environmentally friendly, zero emission operation for both indoor and outdoor applications. Up to 13.8m platform height, A14JE offers great ability to extend over obstacles in tight working areas.


l Battery powered provides quiet,zero-emission and long battery duty cycle.

l Proportional control ensures smooth driving, precise positioning and comfortable operation.

l Self-leveling platform together with hydraulic platform rotation delivers exceptional productivity.

l Intelligent self-diagnostic system for quick troubleshooting.

l Lead-acid battery, lithium battery(A14JE-Li)two options.



  • 15.8m(51.8ft)
    Work Height Max.
  • 230kg(510lbs)
    Platform Capacity
  • 1.8m(5.9ft)
    Machine Width
  • 7.81m(25.6ft)
    Horizontal Outreach
  • 7500kg(16535lbs)
    Machine Weight
ModelsA14JEA45JE
Measurements
Work Height Max.15.8m51'10''
Platform Height13.8m45'3''
Horizontal Outreach7.81m25'7''
Up and Over Height7.26m23'10''
Platform Length1.83m6'
Platform Width0.76m2'6''
A-Stowed Length6.66m21'10''
Length-Transport (jib tucked)5.67m18'7''
B- Overall Width1.8m5'11''
C-Stowed Height1.98m6'6''
Height-Transport2.54m8'4''
D-Wheelbase2.03m6'8''
E-Ground Clearance0.24m9''
Productivity
Max. Platform Occupancy2
Platform Capacity230 kg
507 lbs
Turntable Rotation355°355°
Drive Speed-Stowed4.8km/h3mph
Drive Speed-Raised1km/h0.62mph
Gradeability30%30%
Max. Slope
3°/3°3°/3°
Turning Radius-Inside1.83m6'
Turning Radius-Outside4.1m13'5''
Tire TypeFoam-filled non-marking
Tire Size                                9-14.5
Ground Pressure, Tyres820.8 kPa119 psi
Power
Lead-acid Battery48 V 390 Ah,FLA
Lithium Battery (A14JE-Li)                    48 V 280 Ah(A14JE-Li)
Hydraulic System
Hydraulic Oil Capacity30 L7.9 gal
Weight
Machine Weight(CE/ANSI)7500 kg16535 lbs

Standard features

Proportional control

Tilt alarm with lift cut-out

Overload sensing system

Descent alarm with flashing beacon

Platform auto-leveling system

Emergency stop button

On-board diagnostic system

Rear-wheel drive and break

Over tilt protection system

Anti-collision protection

Horn/Hour meter

Full-height drive

Telematics connector

Foam-filled tires

Platform tool box


Options

AC power to platform

Solid non-marking tires

Solid tires

Telematics

Biodegradable hydraulic oil


PRODUCT VIDEO

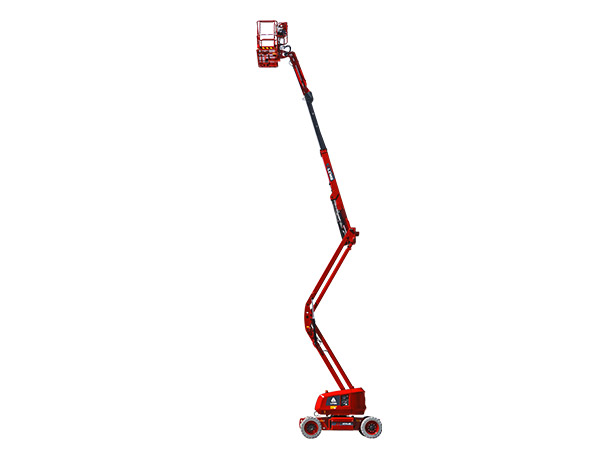

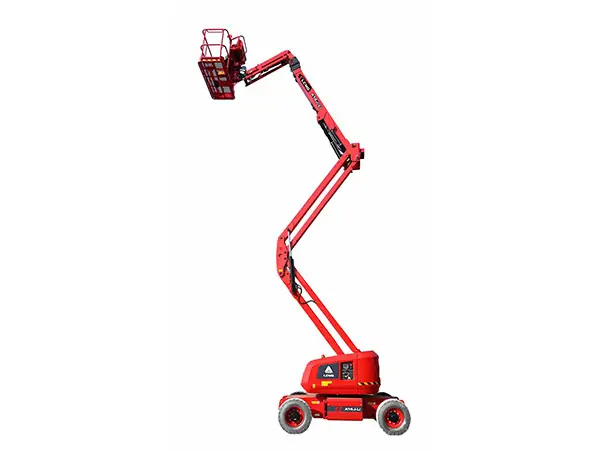

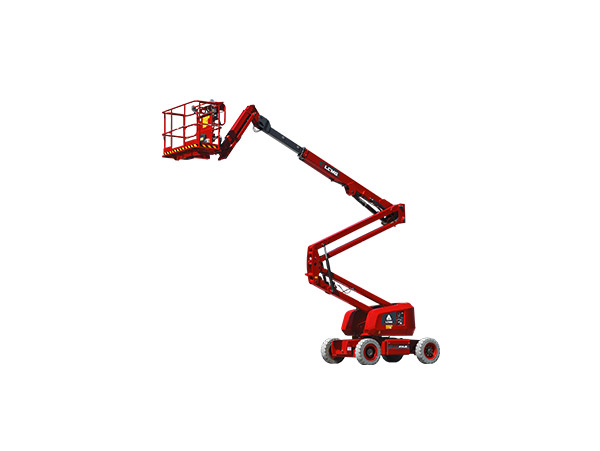

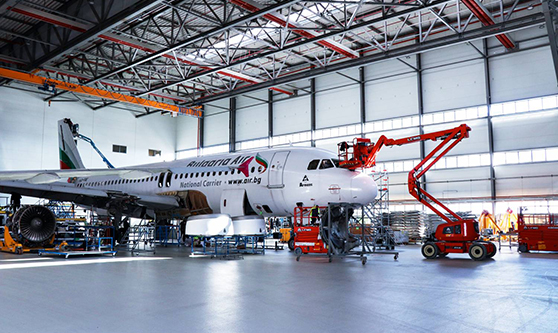

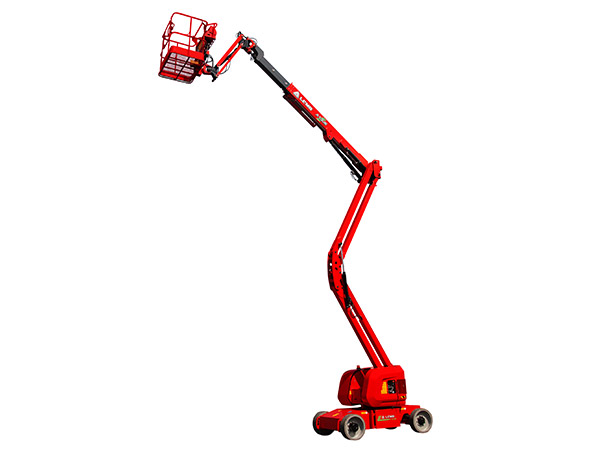

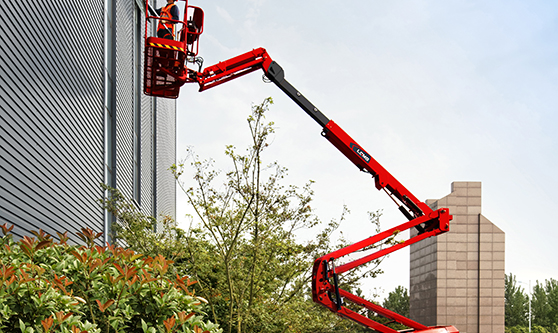

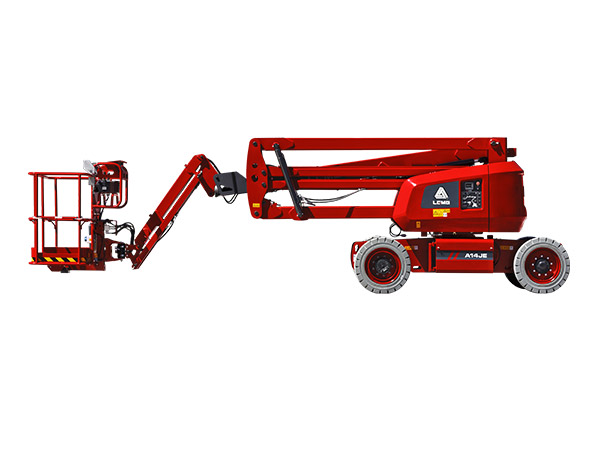

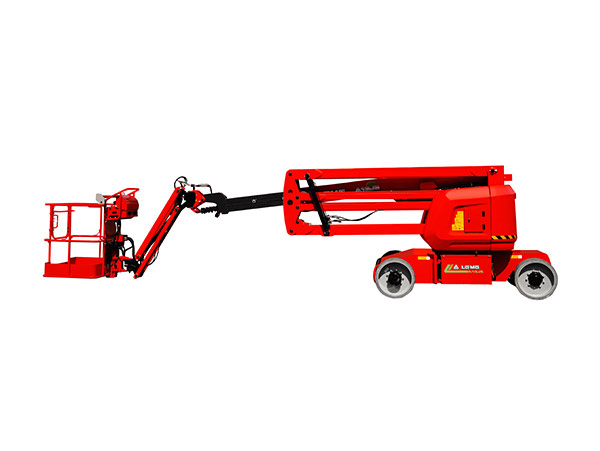

PRODUCT PICTURES
