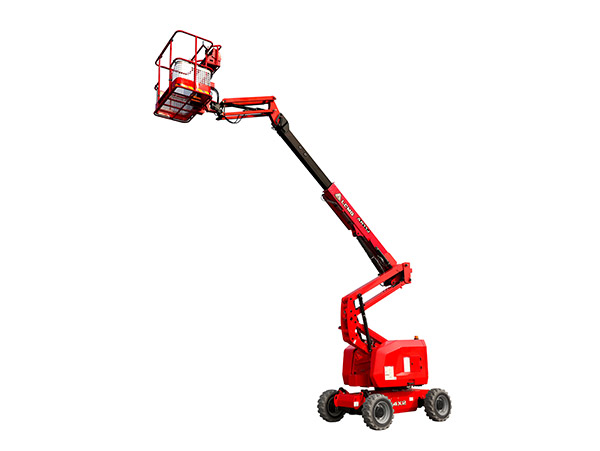

LGMG AR Series articulating boom lifts are purpose built for outdoor construction and industrial applications. Simple and reliable design with industrial features make this machine easy to operate. A standard jib offers the ability to reach even the most hard to reach places.
l 270kg large platform capacity design maximises productivity.
l Motion squawker, dual pole battery and starter iso-lators as standard.
l Powerful axle-integrated four-wheel drive system.
l Full-time floating axle significantly improves rough terrain capability and ground clearance.
l Advanced proportional electronic control system for easy diagnostics as well as accurate positioning and smooth operation.
| MODELS | AR11J | AR35J |
| Measurements | Metric | Imperial |
| Work Height Max. | 12.75m | 41'10'' |
| Platform Height Max. | 10.75m | 35'3'' |
| Horizontal Outreach | 6.78m | 22'3'' |
| Up and Over Height | 5.32m | 17'5'' |
| Platform Length | 1.42m | 4'8'' |
| Platform Width | 0.76m | 2'6'' |
| Stowed Length | 5.77m | 18'11'' |
| Length-Transport (jib tucked) | 4.46m | 14'8'' |
| Overall Width | 1.85m | 6'1'' |
| Stowed Height | 2.06m | 6'9'' |
| Height-Transport | 2.29m | 7'6'' |
| Wheelbase | 1.88m | 6'2'' |
| Ground Clearance | 0.19m | 7' |
| PRODUCTIVITY | ||
| Max. Platform Occupancy | 2 | |
| Platform Capacity | 270kg | 595 lbs |
| Turntable Rotation | 355° | |
| Drive Speed-Stowed | 5km/h | 3.1mph |
| Drive Speed-Raised | 0.8km/h | 0.5mph |
| Gradeability | 45% | |
| Max. Wind Speed | 12.5m/s | 28mph |
| Turning Radius-Inside | 2.6m | 8'6'' |
| Turning Radius-Outside | 4.7m | 15'5'' |
| Max.Slope | 3°/4.5° | |
| Tires Type | Foam-filled non-marking | |
| Tires Models | 10-16.5 | |
| Ground Pressure, Tyres | 289 kPa | 41.9 psi |
| POWER | ||
| Power Source | Kubota D1105 18.2kW/24.4hp | |
| Fuel Tank Capacity | 45L | 11.9gal |
| HYDRAULIC SYSTEM | ||
| Hydraulic Oil Volume | 58L | 15.3gal |
| WEIGHT | ||
| Machine Weight | 5,400kg | 11,905 lbs |
STANDARD FEATURES
Proportional control
Horn/Hour meter
Full-height drive
Flashing beacons
Cylinder bellows
Platform tool box
Oscillating axle
Telematics connector
Emergency stop device
Auto-leveling platform
Anti-collision protection
Over tilt protection system
Platform control cover
Overload sensing system
Intelligent diagnostic system
Foam-filled non-marking tires
OPTIONAL
Telematics
Auxiliary rail
AC power to platform
Hydraulic generator kit
Cold weather package
3.5kw Hydraulic generator
Foam-filled tires
Solid tires
Solid non-marking tires
Biodegradable hydraulic oil
Half-height mesh platform
