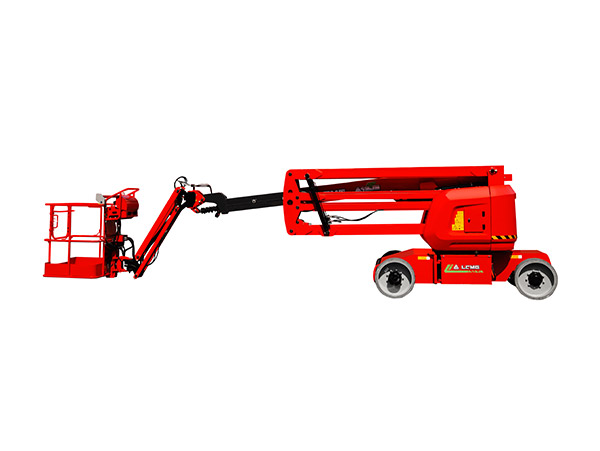

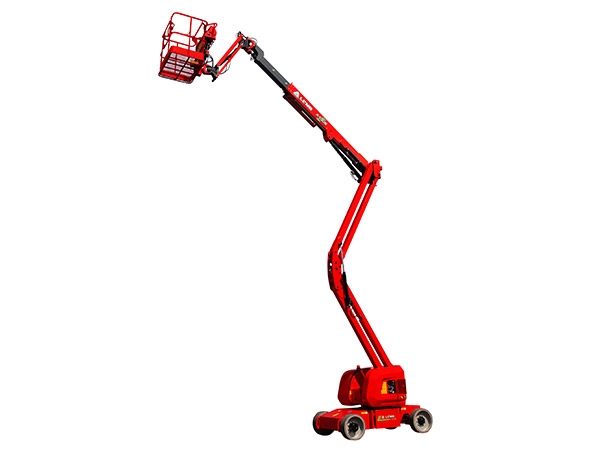

LGMG A13JE articulating boom lifts can be equipped with large capacity lithium battery or lead-acid battery. Simple and reliable design make this machine easy to operate. With compact size and small tail swing design, A13JE is convenient for construction tasks in narrow places.
l Battery powered provides quiet，zero-emission and long battery duty cycle.
l Proportional control ensures smooth driving, precise positioning and comfortable operation.
l Self-leveling platform together with hydraulic platform rotation delivers exceptional
productivity.
l Intelligent self-diagnostic system for quick troubleshooting.
l Lead-acid battery, lithium battery（A13JE-Li）two options.
| Models | A13JE | A43JE |
| Measurements | Metric | US |
| Work Height Max. | 15m | 49'3'' |
| Platform Height | 13m | 42'8'' |
| Horizontal Outreach | 7.46m | 24'6'' |
| Up and Over Height | 7.1m | 23'4'' |
| Platform Length | 1.2m | 3'11'' |
| Platform Width | 0.9m | 2'11'' |
| Platform Capacity | 200kg | 440 lbs |
| A- Stowed Length | 6.7m | 22' |
| Length-Transport (jib tucked) | 5.76m | 18'11'' |
| B- Overall Width | 1.5m | 4'11'' |
| C- Stowed Height | 1.98m | 6'6'' |
| Height-Transport | 2.66m | 8'9'' |
| D-Wheelbase | 2.03m | 6'8'' |
| E-Ground Clearance | 0.2m | 8'' |
| Productivity | ||
| Max. Platform Occupancy | 2(in) / 2(out) | |
| Turntable Rotation | 355° | 355° |
| Drive Speed-Stowed | 5km/h | 3.1mph |
| Drive Speed-Raised | 0.8km/h | 0.5mph |
| Gradeability | 30% | 30% |
| Max. Wind Speed | 12.5m/s | 28mph |
| Turning Radius-Inside | 2.2m | 7'3'' |
| Turning Radius-Outside | 4.07m | 13'4'' |
| Max.Slope | 3°/3° | 3°/3° |
| Tires Type | Solid Non-marking | |
| Tires Size | 600x190mm | 24''x7'' |
| Power | ||
| Lead-acid Battery | 48V 330Ah | |
| Lithium Battery (A13JE-Li) | 48V 250Ah | |
| Hydraulic System | ||
| Hydraulic Oil Volume | 25L | 6.6gal |
| Weight | ||
| Machine Weight (CE/ANSI) | 6950kg | 15322 lbs |
Standard features
Proportional control
Horn/Hour meter
AC drive motor
Telematic connector
Power switch
Drop bar entry
Telematics connector
Over tilt protection system
Overload sensing system
Intelligent diagnostic system
Anti-collision protection
Auto-leveling platform
Solid non-marking tires
Descent alarm with flashing beacon
Optional
AC power to platform
Telematics
Biodegradable hydraulic oil
