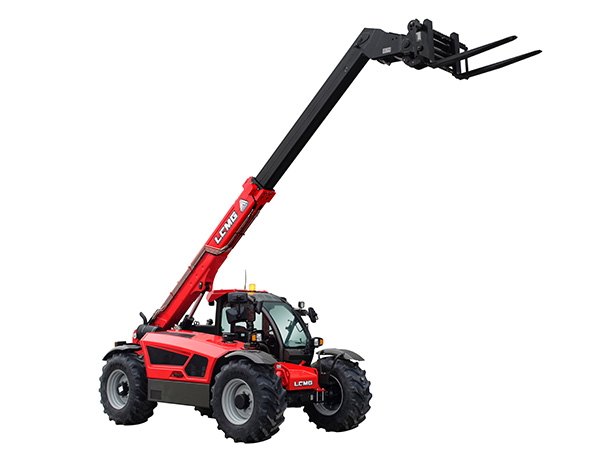

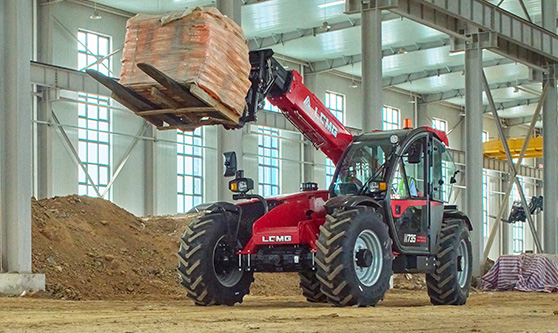

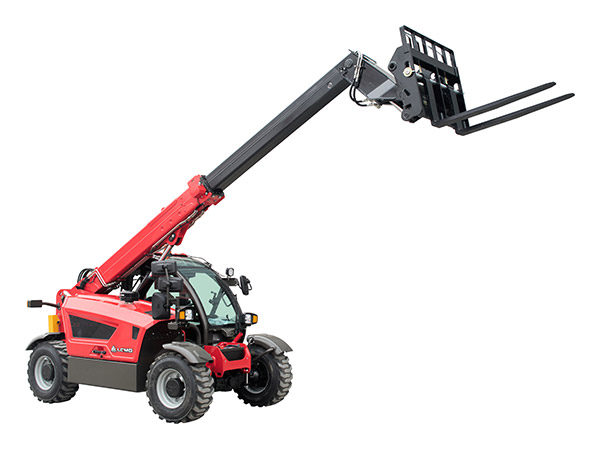

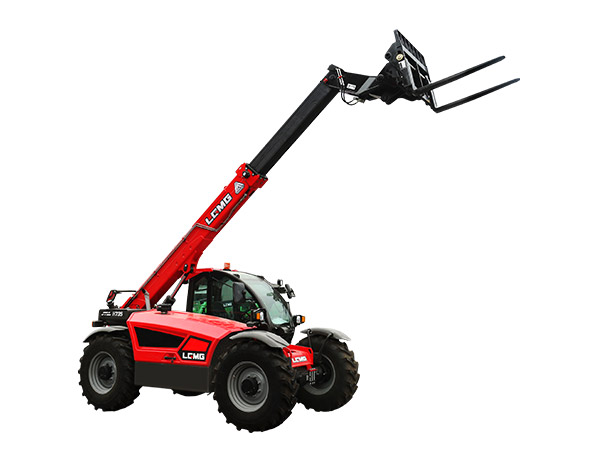

The LGMG H735 is a telehandler with a capacity of 3500kg and a maximum lifting height of 7 meters.
It incorporates hydrostatic transmission, a two-speed transfer case, robust power, and exceptional transmission efficiency. With three distinct steering modes, it can be tailored to suit the requirements of operations in confined spaces.
The H735 prioritizes driver safety through the utilization of a FOPS&ROPS cab. Furthermore, it offers extensive adaptability, accommodating a wide range of attachments for tasks such as forklifting, lifting, loading, grabbing, clamping, manned operations, and more. This versatility transforms it into a true multi-purpose machine.
| Models | H735 | |
| Measurements | Metric | Imperial |
| A-Max. Lifting Height | 7 m | 23' |
| Max. Outreach | 3.9 m | 12'10'' |
| B-Overall Lenth | 4.99 m | 16'4'' |
| C-Overall Width | 2.34 m | 7'8'' |
| D-Overall Height | 2.3 m | 7'7'' |
| E-Wheelbase | 2.85 m | 9'4'' |
| F-Wheel Track | 1.93 m | 6'4'' |
| Ground Clearance | 0.45 m | 1'6'' |
| Productivity | ||
| Max. Capacity | 3500 kg | 7716 lbs |
| Gradebility-Unladen | 45% | |
| Min.Turning Radius | 3.9 m | 12'10'' |
| Tilt Angle | ±5° | |
| Drive/Steering Mode | 4 Wheel Driving/4 Wheel Steer | |
| Primary Boom Ascending Time | 7.51 s | |
| Primary Boom Descending Time | 5.57 s | |
| Boom Extending Time | 6.93 s | |
| Boom retracting Time | 5.32 s | |
| Forward-First Gear Travel Speed | 9 km/h | 5.6mph |
| Forward-Second Gear Travel Speed | 27 km/h | 16.8mph |
| Backward-First Gear Travel Speed | 9 km/h | 5.6mph |
| Backward-Second Gear Travel Speed | 27 km/h | 16.8mph |
| Max. Braking Distance-Unladen | ≤ 3 m (27 km/h) | ≤9'11''(16.8mph) |
| Standard Tires | 400/80 R24 | |
| Power | ||
| Manufacturer | Kubota （Euro V engine) | |
| Rated Power | 54.6 kW | 73.2 hp |
| Max. Power | 54.6 kW | 73.2 hp |
| Max. Torque | 289.3 N.m | 213.4 lb.ft |
| Displacement | 3331 ml | 203 cu.in |
| Tank Capacity | ||
| Hydraulic Oil Capacity | 100 L | 26.4 gal |
| Fuel Tank Capacity | 100 L | 26.4 gal |
| Weight | ||
| Machine Weight | 7000 kg | 15432 lbs |
