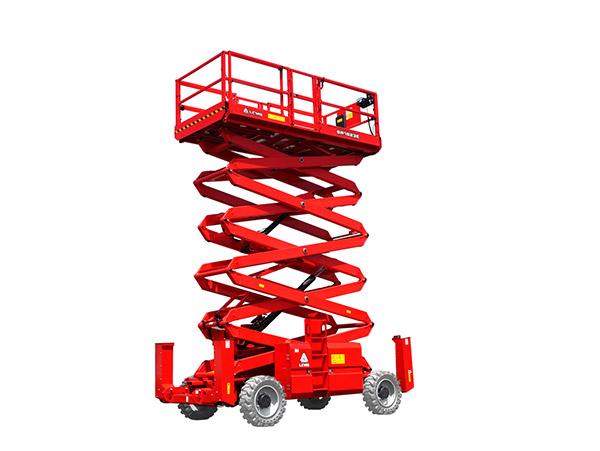

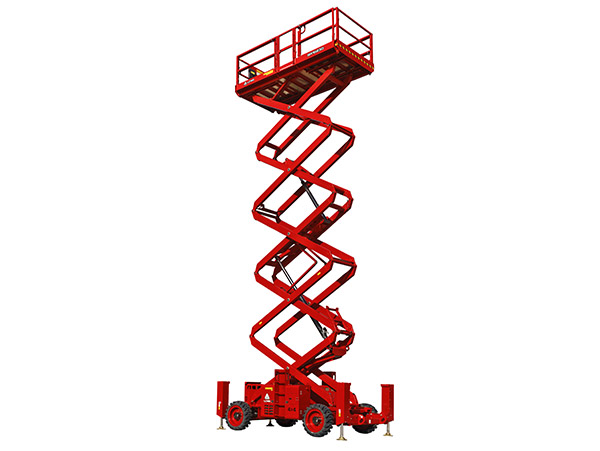

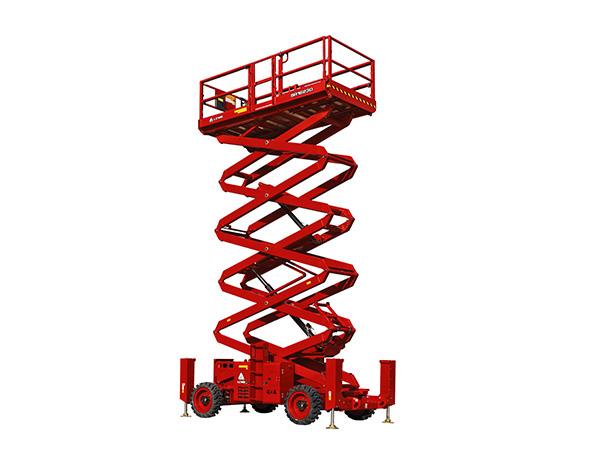

l The large platform with dual-extension decks provides a wide working range.
l Battery powered, zero emission and quiet drive mean this machine is environmentally friendly.
l Integrated with four-wheel-drive system with axles that offers strong power and smooth transmission.
l Hydraulic outriggers deliver а better solution on uneven ground.
l intelligent self-diagnostic system for quick troubleshooting.
| MODELS | SR1623E | SR5390E |
| Measurements | Metric | Imperial |
| Work Height Max. | 17.9 m | 58'9'' |
| A-Platform Height - Raised | 15.9 m | 52'2'' |
| B-Platform Height - Stowed | 2.13 m | 7' |
| C-Platform Length | 4.81 m | 15'9'' |
| D-Platform Width | 1.83 m | 6' |
| D-Overall Length (with ladder) | 4.9 m | 16'1'' |
| E-Overall Width | 2.3 m | 7'7'' |
| F-Overall Height - Rails up | 3.23 m | 10'7'' |
| Overall Height - Rails down | 2.53 m | 8'4'' |
| G-Extension Deck | 1.45/1.14 m | 4'9''/3'9'' |
| H-Wheelbase | 2.85 m | 9'4'' |
| Ground Clearance-Center | 0.26 m | 10'' |
| PRODUCTIVITY | ||
| Max. Platform Occupancy | 4 (in) / 4 (out) | |
| Platform Capacity | 680 kg | 1500 lbs |
| Platform Capacity - Extension | 230 kg | 510 lbs |
| Drive Height | 8.5 m | 27'11'' |
| Gradeability - Stowed | 40% | |
| Min. Turning Radius | 6.57 m | 15'7'' |
| Raise/Lower Speed | 70 s/ 50 s | |
| Brakes | Four-wheel Brake | |
| Drive Mode | 4x4 | |
| Tires Type | Solid Non-marking | |
| Tires Size | 835x290 mm | 33''x11'' |
| Ground Pressure, Tyres | 888.31 kPa | 128.8 psi |
| POWER | ||
| Power Source | 80V DC 228Ah | |
| HYDRAULIC SYSTEM | ||
| Hydraulic Oil Volume | 80 L | 21 gal |
| WEIGHT | ||
| Machine Weight (CE/ANSI) | 8200 kg | 18080 lbs |
STANDARD FEATURES
Li-battery
Tilt alarm with lift cut-out
Proportional control
Overload sensing system
Foldable guardrail
Self-lock entry gate
Emergency stop device
All motions alarm
Manual brake release
Intelligent diagnostic system
Emergency descent
Auto-leveling outriggers
Oscillating axle
Solid non-marking tires
Descent alarm with flashing beacon
OPTIONAL
Telematics
Solid tires
AC power to platform
Foam-filled non-marking tires
Biodegradable hydraulic oil
Foam-filled tires
