SR1623D(SR5390D)

LGMG SR23D Series rough terrain scissor lifts deliver higher capacities and larger platforms for the most tough construction job sites. Four-wheel drive, oscillating axels and hydraulic outriggers provide superior stability on the most tough uneven surfaces.


l Larger working platform with dual extension decks offers great productivity.

l Powerful diesel engine, oscillating axels and four-wheel drive provide better performance on most  rough terrain job sites.

l Standard features with one button auto leveling outriggers, overload system, motion alarm, help the operator to complete the job in a much safer way.

l Pull-out engine tray for easy access and maintenance.

l On-board self-diagnosis system makes it easier for quick troubleshooting.


  • 17.9m(58.7ft)
    Max. Working Height
  • 680kg(1500lbs)
    Platform Capacity
  • 2.3m(7.55ft)
    Machine Width
  • 4.9m(16ft)
    Machine Length
  • 8200kg(18080lbs)
    Machine Weight
ModelsSR1623DSR5390D
Measurements
Work Height Max.17.9m58.7ft
A-Platform Height-Raised15.9m52.2ft
B-Platform Height-Stowed2.08m81.9ft
C-Platform Length3.98m13ft
D-Platform Width1.83m6ft
E-Overall Length4.9m16ft
F-Overall Width2.3m7.55ft
G-Overall Height-Guardrails Up3.18m10.45ft
Overall Height-Guardrails Down2.5m8.2ft
Extension Deck1.45/1.14(Front/Rear)m4.75/3.7(Front/Rear)ft
H-Wheelbase2.85m111.2in
Ground Clearance-Center0.23m0.75ft
Productivity
Max. Platform Occupants (In/out)4/4
Platform Capacity680kg1500lbs
Platform Capacity-Extension Deck230kg510lbs
Drive Height8.527.9
Gradeability-Stowed40%
Turning Radius-Outside5.33m17.45ft
Raise/Lower Speed55/55s
BrakesFour-wheel Brake
Drive Mode4×4
TIres TypeSolid
TIres Size835×290mm33×12in
Power
Power Source

Deutz D2.9 L4 36.4kw/48.8hp

Fuel Tank Capacity110L30gal
Hydraulic System
Hydraulic Oil Capacity140L37gal
Weight
Machine Weight  (CE/ANSI)8100(6.58m platform)kg17860lbs
Machine Weight  (CE/ANSI)8200(7.4m platform)kg18080lbs

Standard features

Proportional control

Tilt alarm with lift cut-out

Overload sensing system

Descent alarm with flashing beacon

Self-lock entry gate

Auto-leveling outriggers

Emergency stop button

On-board diagnostic system

Oscillating axle

Four-wheel drive and break

Horn/Hour meter

Emergency descent



Options

6.58m/7.4m platform extension

AC power to platform

Platform anti-collision device

Hydraulic generator

Solid non-marking tires

Foam-filled tires

Foam-filled non-marking tires


PRODUCT VIDEO

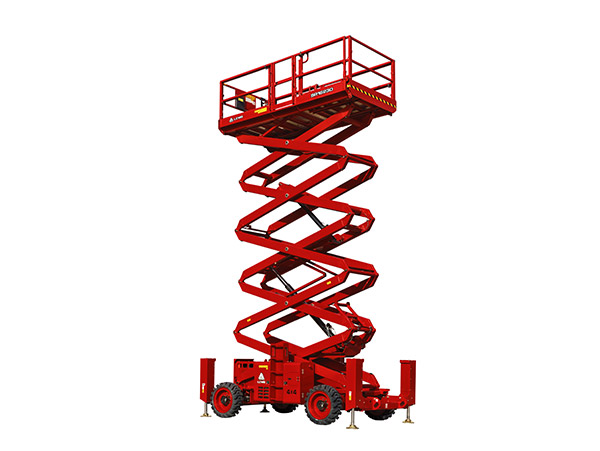

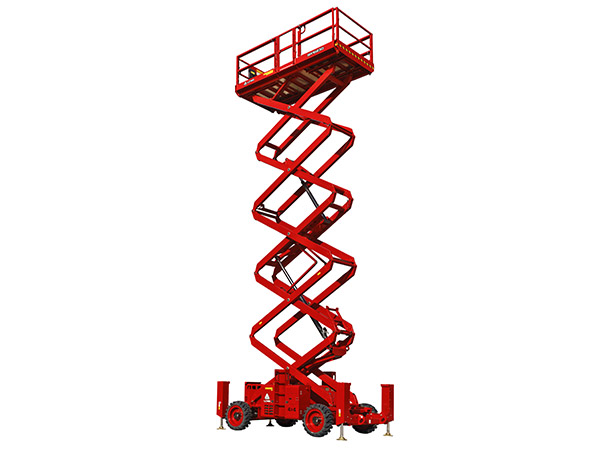

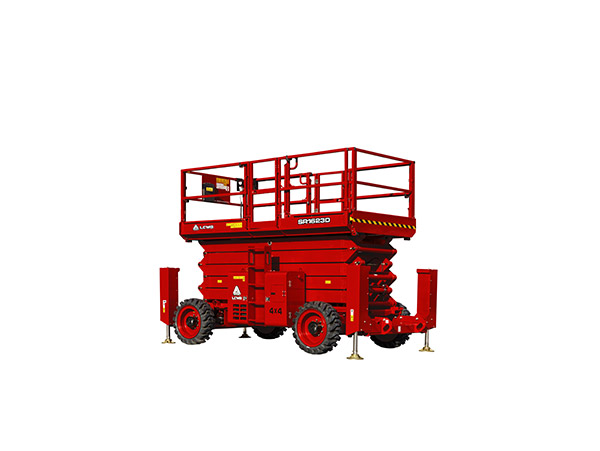

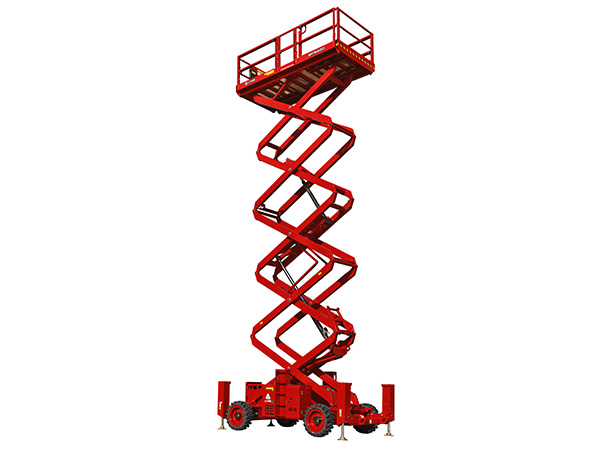

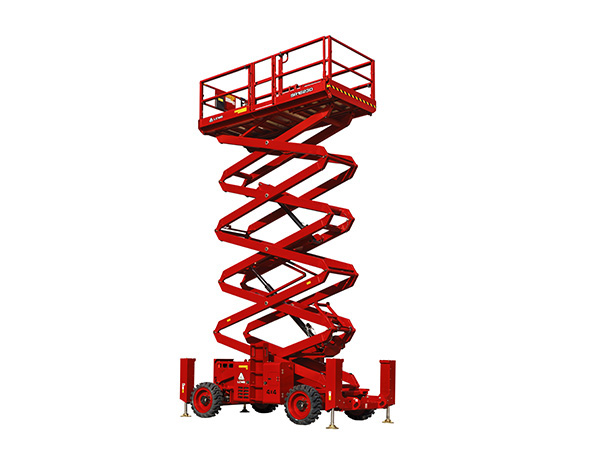

PRODUCT PICTURES

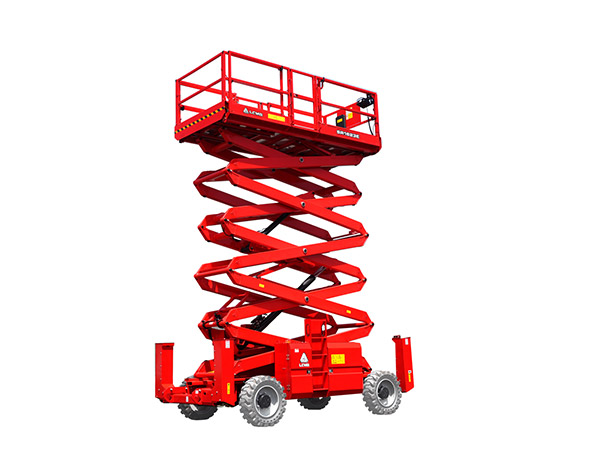

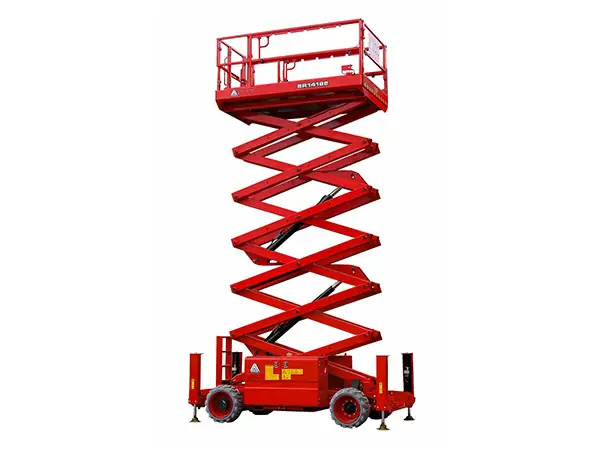

RELATED PRODUCTS
