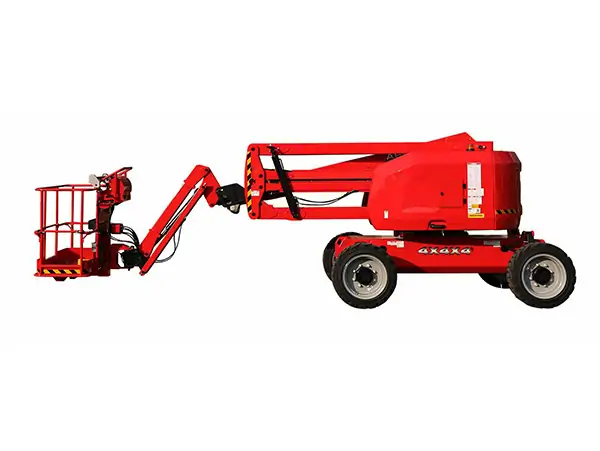

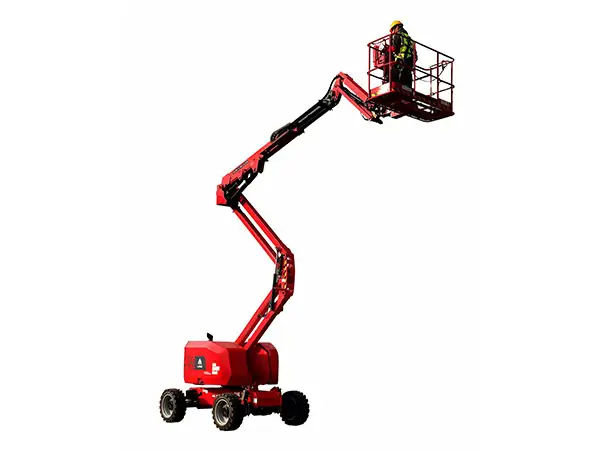

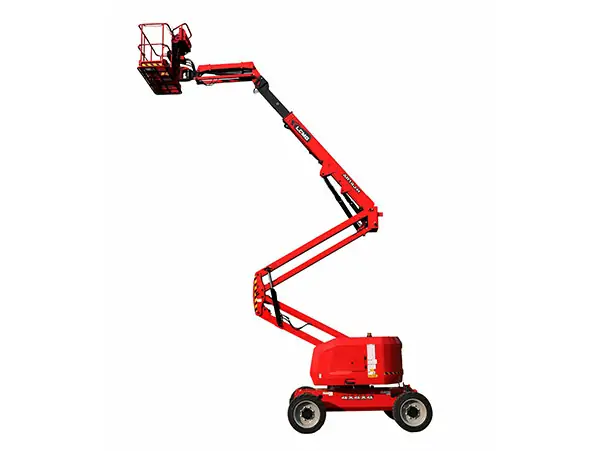

LGMG AR14J-H has a 450/300kg dual capacity design and a maximum working height of 15.9m, which allows more materials to be carried at once and greatly improves efficiency on the worksite. Its self-leveling platform together with hydraulic platform rotation delivers exceptional productivity.
l The 450/300kg (992/661lbs) dual-capacity design greatly improves efficiency on the
worksite.
l Proportional smooth driving, precise positioning and comfortable operation.
l Self-leveling platform together with hydraulic platform rotation deliver exceptional productivity.
l Swing out engine tray for easy access and maintenance.
l Intelligent self-diagnostic system for quick troubleshooting.
| Models | AR14J-H | AR45J-H |
| Measurements | Metric | US |
| Working Height | 15.9m | 52'2'' |
| Platform Height | 13.9m | 45'7'' |
| Horizontal Outreach | 7.7m | 25'3'' |
| Up and Over Height | 7.4m | 24'3'' |
| Platform Length | 1.83m | 6' |
| Platform Width | 0.76m | 2'6'' |
| Platform Capacity(unrestricted） | 300kg | 661 lbs |
| Platform Capacity (restricted） | 450kg | 992 lbs |
| A-Stowed Length | 6.95m | 22'10'' |
| Lenth-Transport (jib tucked) | 5.9m | 19'4'' |
| B-Overall Width | 2.3m | 7'7'' |
| C-Stowed Height | 2.24m | 7'4'' |
| Height-Transport | 2.65m | 8'8'' |
| D-Wheelbase | 2.25m | 7'5'' |
| E-Ground Clearance | 0.35m | 1'2'' |
| >Productivity | ||
| Max. Platform Occupancy | 2 (unrestricted) / 3 (restricted) | |
| Turntable Rotation | 355° | 355° |
| Drive Speed-Stowed | 5km/h | 3.1mph |
| Drive Speed-Raised | 0.8km/h | 0.5mph |
| Gradeability | 45% | 45% |
| Max. Wind Speed | 12.5m/s | 28mph |
| Turning Radius-Inside | 1.67m | 5'6'' |
| Turning Radius-Outside | 3.66m | 12’ |
| Max.Slope | 5° | 5° |
| Tire Type | RT Foam-filled | |
| Tire Size | 315/55D20 | 315/55D20 |
| Ground Pressure, Tyres | 520 kPa | 75.4 psi |
| Power | ||
| Power Source | Kubota V2403 36kw/48.2hp / Kubota D110518.5kw 24.8hp | |
| Hydraulic System | ||
| Hydraulic Oil Volume | 75L | 19.8gal |
| Weight | ||
| Machine Weight (CE/ANSI) | 7400kg | 16314 lbs |
Standard features
RT Foam-filled tires
Flashing beacons
Horn/alarm
Oscillating axle
Platform tool box
Cylinder bellows
Telematics connector
Auto-leveling platform
Emergency stop device
Anti-collision protection
Proportional control
Over tilt protection system
Overload sensing system
Intelligent diagnostic system
Full-height drive
Platform control cover
Optional
AC power to platform
Half-height mesh platform
Hydraulic generator kit
Platform control cover
3.5kw Hydraulic generator
Auxiliary rail
Solid non-marking tires
Foam-filled non-marking tires
Solid tires
Telematics
Biodegradable hydraulic oil
